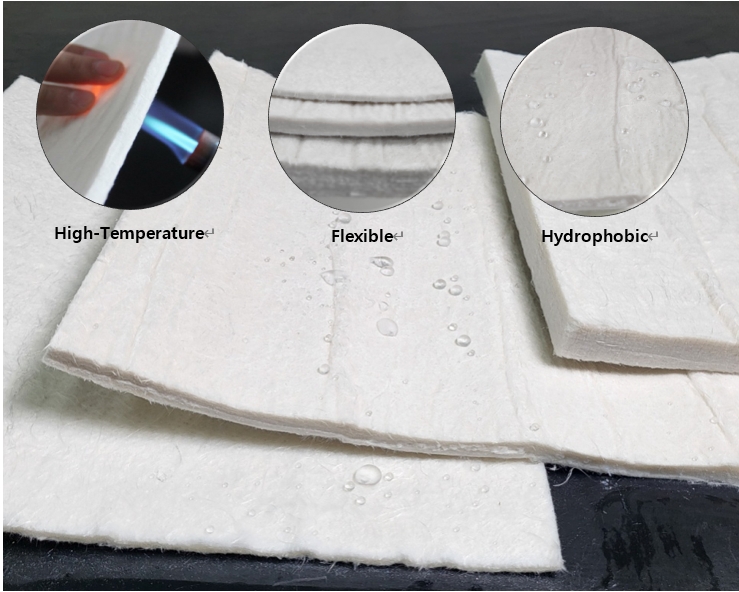

에어로젤 파우더 함침 기술으로 제조된 저분진 고효율 에어로젤 단열 메트는 3가지로 분류된다. |
| |
|
| |
 |
| |
일반고온용 : Flexinsulate 650
초고온용 : Flexinsulate 1000
저온단열용 : Flexinulate CT
|
|
|
| |
|
| |
Flexinsulate 650
표준롤 |
| |
10t 1500mm폭 25m
5t 1500mm폭 45m
|
| |
|
| |
|
| |
Flexinulate 650 표준 물성( 참조용)
| THICKNESS |
5mm |
10mm |
15mm |
20mm |
| WIDTH |
1,000/1,500mm |
| MAX. USE TEMP. |
650℃ |
| COLOR |
White |
| DENSITY |
200kg/㎥ |
|
| |
PROPERTY |
TEST METHOD |
STANDARD |
RESULT |
Maximum Use Temperature |
ASTM C447 |
650℃ |
PASS |
Thermal Conductivity |
ASTM C177 |
23.9℃ |
≤ 0.021W/mK |
PASS |
37.9℃ |
≤ 0.022W/mK |
PASS |
93.3℃ |
≤ 0.023W/mK |
PASS |
149℃ |
≤ 0.025W/mK |
PASS |
204℃ |
≤ 0.029W/mK |
PASS |
260℃ |
≤ 0.032W/mK |
PASS |
316℃ |
≤ 0.036W/mK |
PASS |
371℃ |
≤ 0.043W/mK |
PASS |
Flexibility |
ASTM C1101/1101M |
Flexible |
PASS |
Water Vapor Sorption |
ASTM C1104/1104M |
≤ 5%(by weight) |
PASS |
Water Absorption |
ASTM C1763 |
PASS |
PASS |
Use on Austenitic Stainless Steel |
ASTM C795/692 |
PASS |
PASS |
Compressive Resistance |
ASTM C165 |
≥3psi@10% Deformation |
PASS |
Linear Shrinkage after Exposure to Max. Temperature |
ASTM C356 |
<2%@650℃ |
PASS |
Surface Burning Characteristics |
ASTM E84 |
Flame Spread Index≤5 |
PASS |
Smoke Developed Index≤10 |
PASS |
Corrosiveness to Steel |
ASTM C1617 |
PASS |
PASS |
Combustion Level |
GB 8624 |
A/B |
A1 |
RoHS |
2011/65/EU as amended by (EU)2015/863 |
Compliance |
REACH |
REACH Regulation1907/2006 |
≤0.1% |
|
| |
Flexinsulate will comply with ASTM C1728, Type III, Grade 1A and meets the above requirements. |
| |
|
| |
이상의 물성은 공인시험 물성검사를 시행중에 있어 참조 물성으로만 활용하여야 합니다. |
| |
|
| |
다운로드 자료 |
| |
- 제품 설명 PDF 파일
- MSDS 파일 Flexinsulate 650
- SGS TEST Report ( 시험의뢰중)
- 건축용 단열재에 필요한 연소시험 (시험의뢰중) |
| |
|
