PPS
PPS
PPS(Polyphenylene Sulfide)는 치수안정성이 가장 뛰어난 플라스틱 중 하나로, 탁월한 내화학성 및 내열성을 동시에 가지고 있어 고온의 내화학성이 요구되는 화학플렌트, 의약품, 반도체 제작공정 등 정밀기기부품으로 다양하게 사용되고 있다. 각 Maker별로 상이한 상표(Trade Name)로 제품을 판매하고 있는데 Ryton(Chevron Phillips Chemical), Techtron(콰드란트)이 대표적이다
특징
220℃까지 뛰어난 강도 경도 유지(-20℃)
탁월한 내화학성(200℃ 이하에서 반응하는 유기용재 없음)
수분흡수율 거의 없음
뛰어난 스팀내성
내방사성
낮은 열팽창계수(치수 안정성)
탁월한 전기적 특성
내화염성(UL94 V-0 급)
|
PHYSICAL PROPERTIES
Natural type of PPS
|
UNITS
|
ASTM
|
RESULTS
|
|
Density
|
lb/in3
|
D792
|
0.049
|
|
Water Absorption, 24 hrs
|
%
|
D570
|
0.01
|
|
MECHANICAL PROPERTIES
|
UNITS
|
ASTM
|
RESULTS
|
|
Tensile Strength
|
psi
|
D638
|
13500
|
|
Tensile Modulus
|
psi
|
D638
|
500000
|
|
Tensile Elongation @Break
|
%
|
D638
|
15
|
|
Flexural Strength
|
psi
|
D790
|
21000
|
|
Flexural Modulus
|
psi
|
400000
|
575000
|
|
Compressive Strength
|
psi
|
D695
|
21500
|
|
Compressive Modulus
|
psi
|
D695
|
430000
|
|
Hardness, Rockwell R
|
|
D785
|
R125/M95
|
|
IZOD Impact Strength Notched
|
ft-lb/in
|
D256
|
0.6
|
|
THERMAL PROPERTIES
|
UNITS
|
ASTM
|
RESULTS
|
|
Coefficient of Linear Thermal Expansion
|
(x 10-5 in./in./°F)
|
D256
|
2.8
|
|
Heat Deflection Temp at 264 psi
|
°F
|
|
250
|
|
Max Operating Temp
|
°F
|
|
425
|
|
Thermal Conductivity
|
BTU-in/ft2-hr-°F
|
C177
|
2
|
|
Flammability Rating
|
|
UL94
|
V - O
|
|
ELECTRICAL PROPERTIES
|
UNITS
|
ASTM
|
RESULTS
|
|
Dielectric Strength
|
V/mil
|
D149
|
540 @1/8" th.
|
|
Dielectric Constant @ 1 MHz
|
|
D150
|
3
|
|
Dissipation Factor @ 1 MHz
|
|
D150
|
0.0013
|
|
Volume Resistivity, 50% RH
|
ohm-cm
|
D257
|
4.5 x 101
|
|
TYPICAL PROPERTIES of EXTRUDED TECHTRON PPS &PEEK GRADES
|
|
ASTM or UL test
|
Property
|
Techtron PPS
Unfilled
|
Techtron HPV
Bearing Grade
|
PEEK
Unfilled
|
Ketron HPV
Bearing Grade
|
|
PHYSICAL
|
|
D792
|
Density (lb/in³)
(g/cm³)
|
0.049
1.35
|
0.052
1.43
|
0.047
1.31
|
0.052
1.44
|
|
D570
|
Water Absorption, 24 hrs (%)
|
0.01
|
0.01
|
0.01
|
0.005
|
|
D570
|
Water Absorption, Saturation (%)
|
0.03
|
0.09
|
0.05
|
0.03
|
|
MECHANICAL
|
|
D638
|
Tensile Strength (psi)
|
13,500
|
10,900
|
16,000
|
11,000
|
|
D638
|
Tensile Modulus (psi)
|
500,000
|
540,000
|
500,000
|
850,000
|
|
D638
|
Tensile Elongation at Break (%)
|
15
|
5
|
20
|
2
|
|
D790
|
Flexural Strength (psi)
|
21,000
|
10,500
|
25,000
|
27,500
|
|
D790
|
Flexural Modulus (psi)
|
575,000
|
535,000
|
600,000
|
1,100,000
|
|
D695
|
Compressive Strength (psi)
|
21,500
|
15,500
|
20,000
|
26,700
|
|
D695
|
Compressive Modulus (psi)
|
430,000
|
340,000
|
500,000
|
1,000,000
|
|
D785
|
Hardness, Rockwell
|
M95/R125
|
M84
|
M100/R126
|
M85
|
|
D256
|
IZOD Impact Notched (ft-lb/in)
|
0.6
|
1.4
|
1.0
|
0.7
|
|
PTM55007
(not ASTM)
|
Coefficient of Friction, Dynamic
|
0.4
|
0.2
|
0.4
|
0.21
|
|
PTM55007
(not ASTM)
|
Limiting PV (psi-fpm)
|
3,000
|
8,750
|
8,500
|
35,000
|
|
PTM55007
(not ASTM)
|

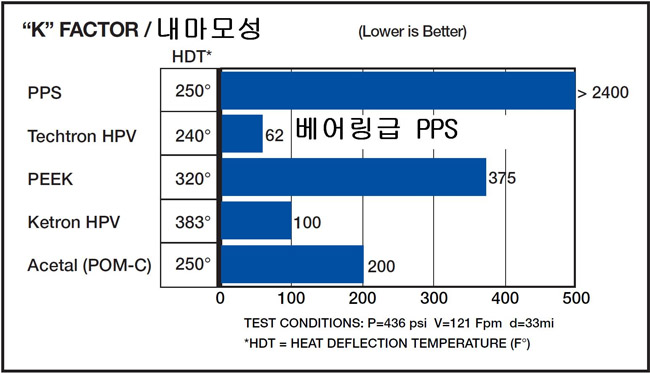

"k" wear factor, (x 10-10 in3-min/lb-ft-hr)
|
2,400
|
62
|
375
|
100
|
|
THERMAL
|
|
D696
|
Coefficient of Linear Thermal Expansion
(x 10-5 in./in./°F)
|
2.8
|
3.3
|
2.6
|
1.7
|
|
D648
|
Heat Deflection Temp (°F / °C)
at 264 psi
|
250 / 121
|
240 / 115
|
320 / 160
|
383 / 195
|
|
D3418
|
Melting Temp (°F / °C)
|
540 / 282
|
536 / 280
|
644 / 340
|
644 / 340
|
|
-
|
Max Operating Temp (°F / °C)
|
425 / 218
|
430 / 221
|
480 / 249
|
482 / 250
|
|
C177
|
Thermal Conductivity
(BTU-in/ft²-hr-°F)
(x 10-4 cal/cm-sec-°C)
|
2.0
6.9
|
2.1
7.2
|
1.8
6.2
|
1.7
5.9
|
|
UL94
|
Flammability Rating
|
V-0
|
V-0
|
V-0
|
V-0
|
|
ELECTRICAL
|
|
D149
|
Dielectric Strength (V/mil) short time, 1/8" thick
|
540
|
500
|
480
|
-
|
|
D150
|
Dielectric Constant at 1 MHz
|
3.0
|
-
|
3.3
|
-
|
|
D150
|
Dissipation Factor at 1 MHz
|
0.0013
|
-
|
0.003
|
-
|
|
D257
|
Surface Resistivity (ohm-square) at 50% RH
|
1013
|
1013
|
1013
|
104
|
|
