DOTHERM DT 600M
모든 용도에 최적의 성능을 제공하는 단열재
| Product description |
Engineered composite material made of resin-bound Muscovite Mica |
| Standard color |
grey |
| Main applications |
Electrical and thermal insulation parts for machine engineering and process industry |
| Delivery program |

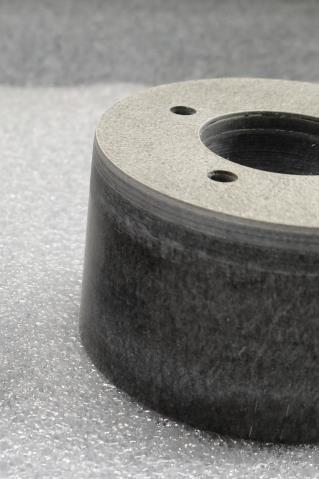

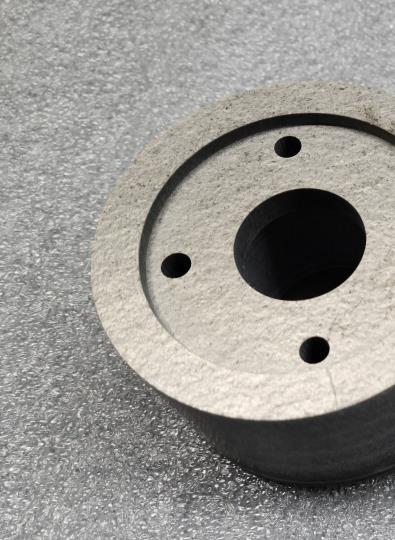

Sheets, panels and highly precise machined parts and finished components |
| Properties |
Test Standard |
Unit |
Typical value |
| Physical characteristics |
Specific gravity |
ISO 1183 |
g/cm3 |
2,1 |
| Water absorption |
ISO 62 |
% |
1,0 |
| Thermal characteristics |
Operating temperature, continuous |
- |
°C |
600 |
| Coeff. of linear thermal expansion |
DIN 51045 |
10-6 x K-1 |
10 |
| Thermal conductivity |
DIN 52612 |
W/mK |
0,26 |
| Mechanical characteristics |
Compressive strength at 23°C |
ISO 604 |
N/mm2 |
400 |
| Flexural strength at 23°C |
ISO 178 |
N/mm2 |
230 |
| Electrical characteristics |
Comparative tracking index |
IEC 112 |
- |
CTI 500 |
| Electric strength |
IEC 243-1 |
KV/3mm |
75 |
| Arc resistance |
V DE0303 Part 71 |
Seconds |
>420 |
| Flammability class |
UL 94 |
- |
V0 |
이상의 DATA는 평균적 품질의 물성 예시로 참고 자료로 활용되어야 하며, 사안별로 개별 사용자의 책임하에 검증과정을 거처 적용되어야 합니다.
Sueco does not quarantee the accuracy or completeness of any information contained heein for unknow application. So these data should be used as a reference.
